Transformer Pressure Relief Switch

It is fitted on the top of the main tank. If the abnormal pressure is relatively high this spring controlled valve can operate within a few milliseconds and provide fast tripping when suitable contacts are fitted. A flashover or short circuit in a liquid filled transformer is usually accompanied by overpressure in the tank due to gas being formed by the decomposition and evaporation of the oil.

tory burch terra sandals 7 5 wooden gate manufacturers northern ireland twin size blanket knitting pattern tory burch liana leather sandals triathlon power meter training wood laminate sheets for furniture yukon air ride kit white closed toe sandals toddler

Dt Accessories Pressure Relief Devices R Series Cedaspe

Electrical And Instrumentation Engineering Prd Of Transformer Pressure Relief Device For Transformer

Sudden Pressure Relay In Oil Filled Power Transformer

Prv Prd In Transformer Pressure Relief Valve Pressure Relies Valve Youtube

Transformer Pressure Relief Valve In India Shree Ji Com

Pressure Relief Devices

Qualitrol 201 202 205 small pressure relief device.

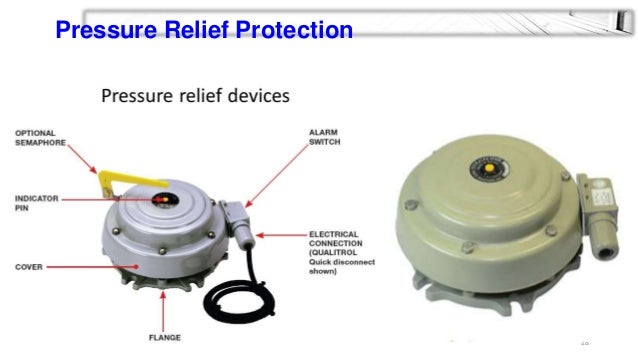

Transformer pressure relief switch. Mechanical over pressure protection device provides pressure relief on transformers during over pressure conditions automatically learn more. By providing the transformer with a pressure relief valve the overpressure can be limited to a magnitude harmless to the transformer. Pressure relief valves for traction transformers krytox lubricated prv for transformers using fr3 oil buchholz relays with magnetic reed switch as per en 50216 2. Qualitrol lprd 208 213 216 large pressure relief device.

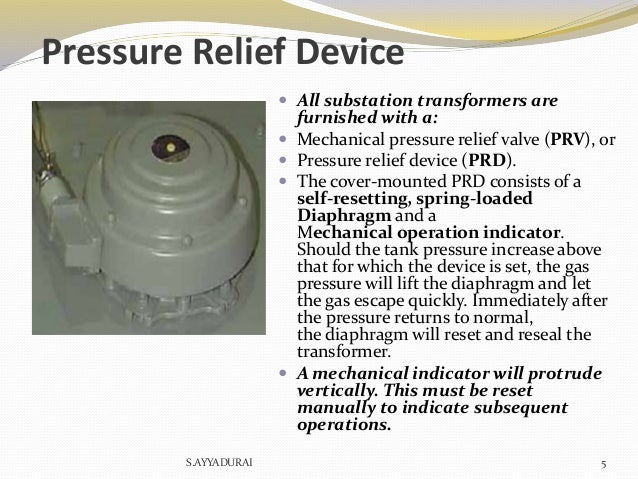

Prd pressure relief device is a device which is used for avoiding high oil pressure builds up inside the transformer during fault conditions. Flange and ring are made from aluminum with a chromate conversion coating with exposed aluminum components receiving an additional epoxy paint coat. After the relay has operated the cap must be removed and the switch reset to normal by depressing the reset button. The pressure relief device limits the tank overpressure and reduces the risk of tank rupture and uncontrolled oil spill which might also cause a fire.

If the pressure cannot be externally discharged there is a danger that the transformer could explode and potentially cause harm and damage. In case of a sudden and uncontrolled increase in pressure inside the transformer the pressure relief device allows the insulating fluid to be discharged in milliseconds. A sudden excessive pressure within the transformer tank exerts pressure directly on the bellows which moves a spring loaded operating pin. Stainless steel operating valve fasteners and hardware.

The prd allows rapid release of excessive pressure that may be generated in the event of a serious fault. The pin operates a switch which provides alarm and breaker trip.
